uPVC Pressure Pipe
$0.00
uPVC Pressure Pipe manufactured to BS 3506 : 1969 Class B, C, D, E & O. And BS 3505: 1986 Class C, D & E. Standard length : 5.8 meter & 6 meters. Socket type: Solvent Weld & Plain-End.
Description
Standard: uPVC Pipe DIN 8061 / 62
Standard Length: 5.8 & 6 meters
Colour: Grey / Dark Grey / White

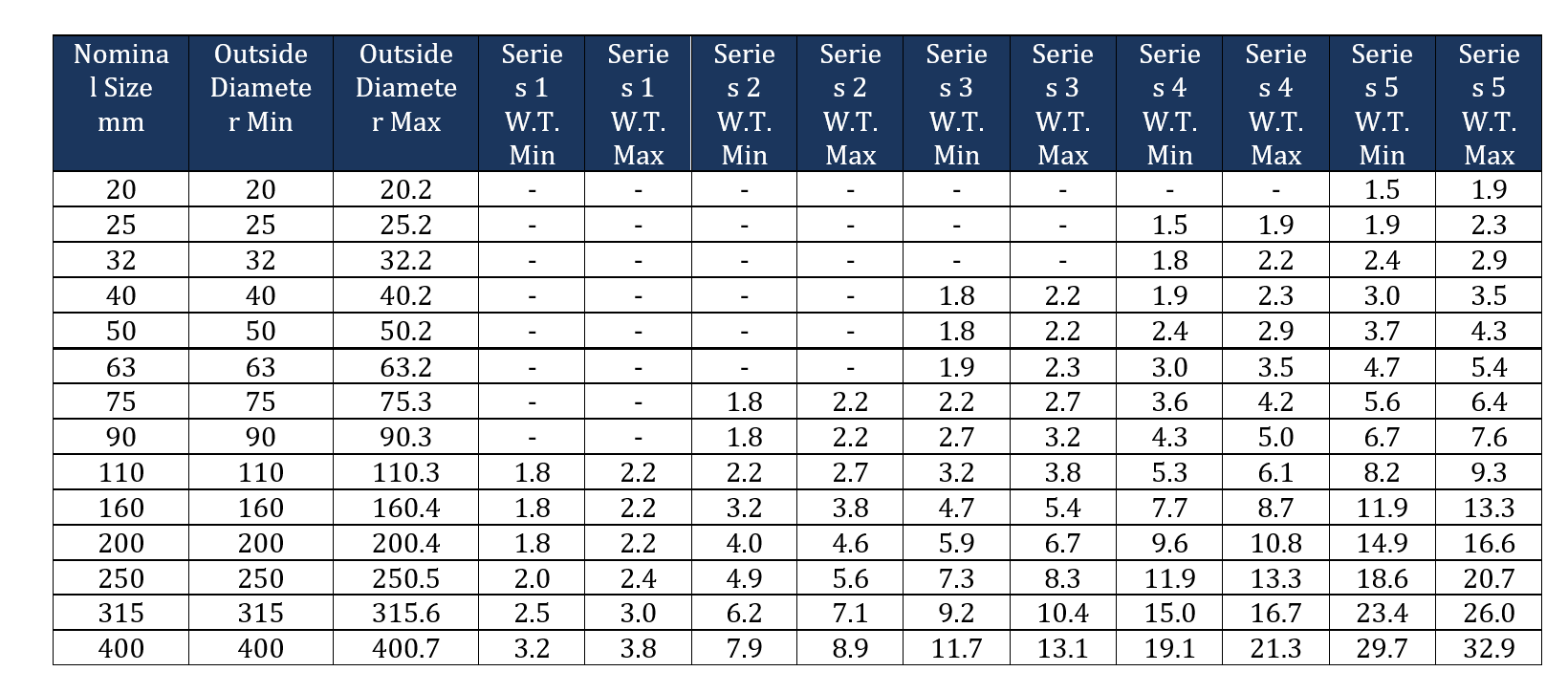

Pressure Ratings at 20°C: Series 2 (4 Bar), Series 3 (6 Bar), Series 4 (10 Bar), Series 5 (16 Bar)
Socket Type: Solvent Weld or Rubber Seal Ring Produced on request
Additional information
| Sizes | 1/2 inch (1.9mm Class E Wall Thickness), 3/4 inch (2.2mm Class E Wall Thickness), 1 inch (2.45mm Class E Wall Thickness), 1 1/4 inch (2.45mm Class D, 2.95mm Class E Wall Thickness), 1 1/2 inch (2.75mm Class D, 3.4mm Class E, 2mm Class O Wall Thickness), 2 inch (2.75mm Class C, 3.2mm Class D, 4.2mm Class E, 2mm Class O Wall Thickness), 2 1/2 inch (3.25mm Class C, 4.2mm Class D, 5.15mm Class E, 2mm Class O Wall Thickness), 3 inch (3.15mm Class B, 3.8mm Class C, 4.95mm Class D, 6.15mm Class E, 2mm Class O Wall Thickness), 4 inch (3.7mm Class B, 4.85mm Class C, 6.45mm Class D, 7.85mm Class E, 2.55mm Class O Wall Thickness), 6 inch (4.85mm Class B, 7.1mm Class C, 9.5mm Class D, 11.65mm Class E, 3.4mm Class O Wall Thickness), 8 inch (5.7mm Class B, 8.4mm Class C, 11.1mm Class D, 13.55mm Class E, 3.4mm Class O Wall Thickness) |
|---|---|
| Color | Dark Grey (except Class O which is White & Class B in black |
