uPVC Electrical Conduit & Tubing and Utilltis Duct
$0.00
uPVC Electrical Conduit & Tubing and Utilltis Duct manufacture to NEMA TC-2, NEMA TC-6 and NEMA TC-8. Standerd Length : 5.8 & 6 meters.Socket Type : Solvent Weld
Description
Standard: NEMA TC-2, NEMA TC-6 and NEMA TC-8
Standard Length: 5.8 & 6 meters
Colour: Grey
Socket Type: Solvent Weld
1 EPT (Electrical Plastic Tubing) – To be encased in concrete.
EPC-40 (Electrical Plastic Conduit) – For direct burial underground.
EB (Encased Burial) – To be encased in concrete.
DB (Direct Burial) – For direct burial underground.
2 Nominal Sizes from 1/2 in. to 1 1/2 in. – Plain end.
Nominal Sizes from 2 in. – One end with solvent weld socket.3 These sizes are non-stock items. Can be produced on special request only.
Additional information

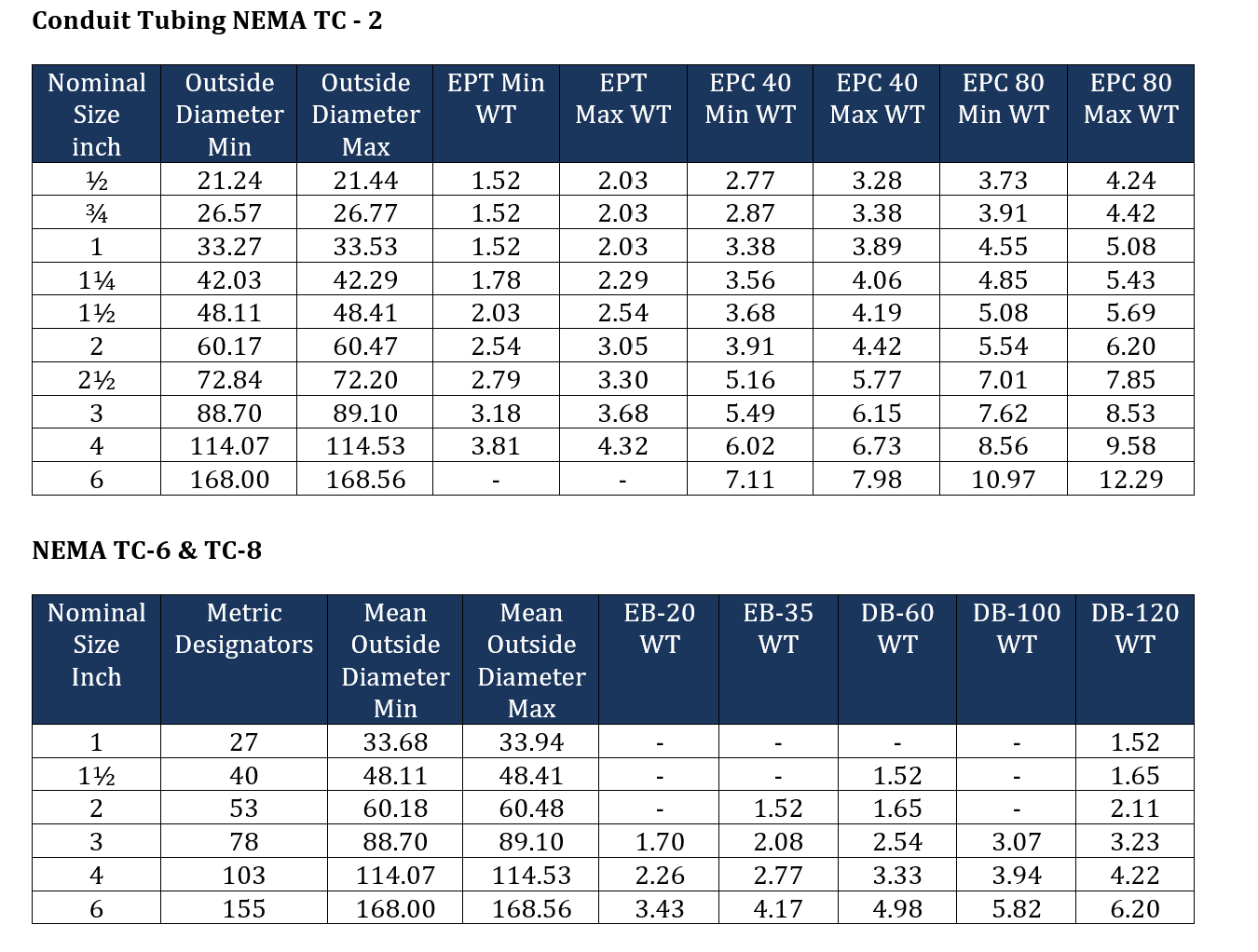

| Sizes | NEMA TC – 2 :1/2 inch (1.775mm EPT, 3.025mm EPC 40, 3.985mm EPC 80 Wall Thickness), NEMA TC – 2 : 3/4 inch (1.775mm EPT, 3.125mm EPC 40, 4.165mm EPC 80 Wall Thickness), NEMA TC – 2 : 1 inch (1.775mm EPT, 3.635mm EPC 40, 4.815mm EPC 80 Wall Thickness), NEMA TC – 2 : 1 1/4 inch (2.035mm EPT, 3.81mm EPC 40, 5.14mm EPC 80 Wall Thickness), NEMA TC – 2 : 1 1/2 inch (2.285mm EPT, 3.935mm EPC 40,5.385mm EPC 80 Wall Thickness), NEMA TC – 2 : 2 inch (2.795mm EPT, 4.165mm EPC 40, 5.87mm EPC 80 Wall Thickness), NEMA TC – 2 :2 1/2 inch (3.045mm EPT, 5.465mm EPC 40, 7.43mm EPC 80 Wall Thickness), NEMA TC – 2 : 3 inch (3.43mm EPT, 5.82mm EPC 40, 8.075mm EPCC 80 Wall Thickness), NEMA TC – 2 : 4 inch (4.065mm EPT, 6.375mm EPC 40, 9.07mm EPC 80 Wall Thickness), NEMA TC – 2 : 6 inch (7.545mm EPC 40, 11.63mm EPC 80 Wall Thickness), NEMA TC – 6 & TC – 8 :1 inch (DB – 120 = 1.52mm Wall Thickness), NEMA TC – 6 & TC – 1 1/2 inch (DB – 60 = 1.52mm, DB – 120 = 1.65mm Wall Thickness), NEMA TC – 6 & TC – 2 inch (EB – 35 = 1.52mm, DB – 60 = 1.65mm, DB – 120 = 2.11mm Wall Thickness), NEMA TC – 6 & TC – 3 inch (EB – 20 = 1.7mm, EB – 35 = 2.08mm, DB – 60 = 2.54mm, DB – 100 = 3.07mm, DB – 120 = 3.23mm Wall Thickness), NEMA TC – 6 & TC – 4 inch (EB – 20 = 2.26mm, EB – 35 = 2.77mm, DB – 60 = 3.33mm, DB – 100 = 3.94mm, DB – 120 = 4.22mm Wall Thickness), NEMA TC – 6 & TC – 6 inch (EB – 20 = 3.43mm, EB – 35 = 4.17mm, DB – 60 = 4.98mm, DB – 100 = 5.82mm, DB – 120 = 6.2mm Wall Thickness) |
|---|---|
| color | Grey |
