ASTM D 2241
$0.00
ASTM D 2241 manufactured to : ASTM D 2241-88. Standerd Length 5.8 & 6 meters. Socket Type : Solvent Weld
Description
PVC for ASTM D 2241
Standard: ASTM D 2241-88
Standard Length: 5.8 & 6 meters
Colour: White
Socket Type: Solvent Weld
ASTM D 2241 – Pressure Rated Pipes (SDR-Series)
Additional information

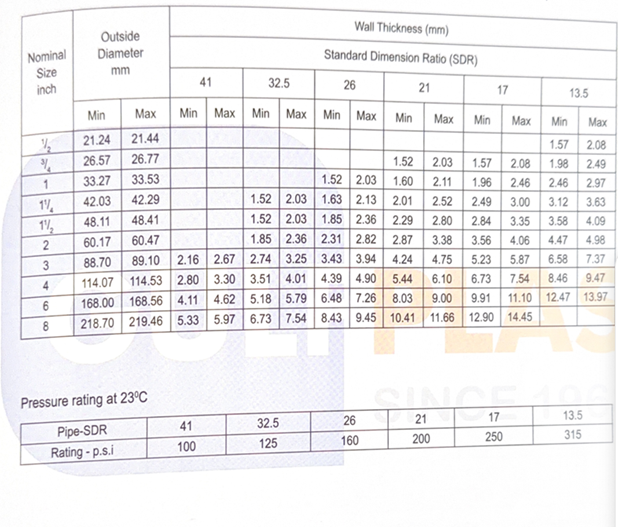

| Sizes | 1/2 inch (1.825mm 13.5 SDR Wall Thickness), 3/4 inch (1.775mm 21 SDR, 1.825mm 17 SDR, 2.235mm 13.5 SDR Wall Thickness), 1 inch (1.775mm 26 SDR, 1.855mm 21 SDR, 2.21mm 17 SDR, 2.715mm 13.5 SDR Wall Thickness), 1 1/4 inch (1.775mm 32.5 SDR, 1.88mm 26 SDR, 2.65mm 21 SDR, 2.745mm 17 SDR, 3.375mm 13.5 SDR Wall Thickness), 1 1/2 inch (1.775mm 32.5 SDR, 2.105mm 26 SDR, 2.545mm 21 SDR, 3.095mm 17 SDR, 3.835mm 13.5 SDR Wall Thickness), 2 inch (2.105mm 32.5 SDR, 2.565mm 26 SDR, 3.125mm 21 SDR, 3.81mm 17 SDR, 4.725mm 13.5 SDR Wall Thickness), 3 inch (2.415mm 41 SDR, 2.995mm 32.5 SDR, 3.64mm 26 SDR, 4.495mm 21 SDR, 5.55mm 17 SDR, 6.975mm 13.5 SDR Wall Thickness), 4 inch (3.05mm 41 SDR, 8.76mm 32.5 SDR, 4.645mm 26 SDR, 5.77mm 21 SDR, 7.135mm 17 SDR, 8.965mm 13.5 SDR Wall Thickness), 6 inch (4.365mm 41 SDR, 5.485mm 32.5 SDR, 6.87mm 26 SDR, 8.515mm 21 SDR, 10.505mm 17 SDR, 13.22mm 13.5 SDR Wall Thickness), 8 inch (5.65mm 41 SDR, 7.135mm 32.5 SDR, 9.93mm 27 SDR, 11.035mm 21 SDR, 13.675mm 17 SDR Wall Thickness) |
|---|---|
| color | white |
